Drivetrain & Re-Gearing

Gear Ratio & Tire Size Re-Gearing Calculator

Determine how bigger tires alter your final drive ratio, and find the exact differential ring & pinion gears needed to restore factory acceleration and towing power.

Differential Re-Gearing Calculator & RPM Simulator

Original Tire Diameter

e.g. 265/70R17 = 31.6"

New Tire Diameter

e.g. 35x12.50R17 = 34.8"

Factory Axle Ratio Check driver door tag or window sticker

Effective Ratio Now

3.39:1

Sluggish off-the-line torque

Target Re-Gear (Factory Match)

4.11:1

Exact OEM engine RPM match

Recommended Ring & Pinion

4.10 or 4.56

Standard aftermarket gear set

Cruising Engine RPM at 65 & 75 MPH (Overdrive: 0.70)

Speed	Stock Setup (31.6" on 3.73)	With 35s (Un-geared)	With 35s (Re-Geared 4.10)	With 35s (Towing 4.56)

Axle Ratio Math & Drivetrain Mechanics

Why Re-Gearing is Critical for Big Tires

When you mount 35-inch or 37-inch tires, you reduce the engine's mechanical advantage. The engine struggles to reach its powerband, causing the automatic transmission to constantly downshift and "hunt" on mild highway grades. Re-gearing your front and rear differentials restores factory acceleration, improves crawl ratio for off-roading, and prevents transmission overheating.

Daily Driver vs Heavy Towing Ratios

If you primarily commute on flat highways, re-gearing to match your exact OEM ratio (e.g. 4.10) delivers optimal fuel economy. If you tow heavy trailers, carry overland gear, or drive mountainous grades, choose the next lower gear set (e.g. 4.56 or 4.88) for extra torque output.

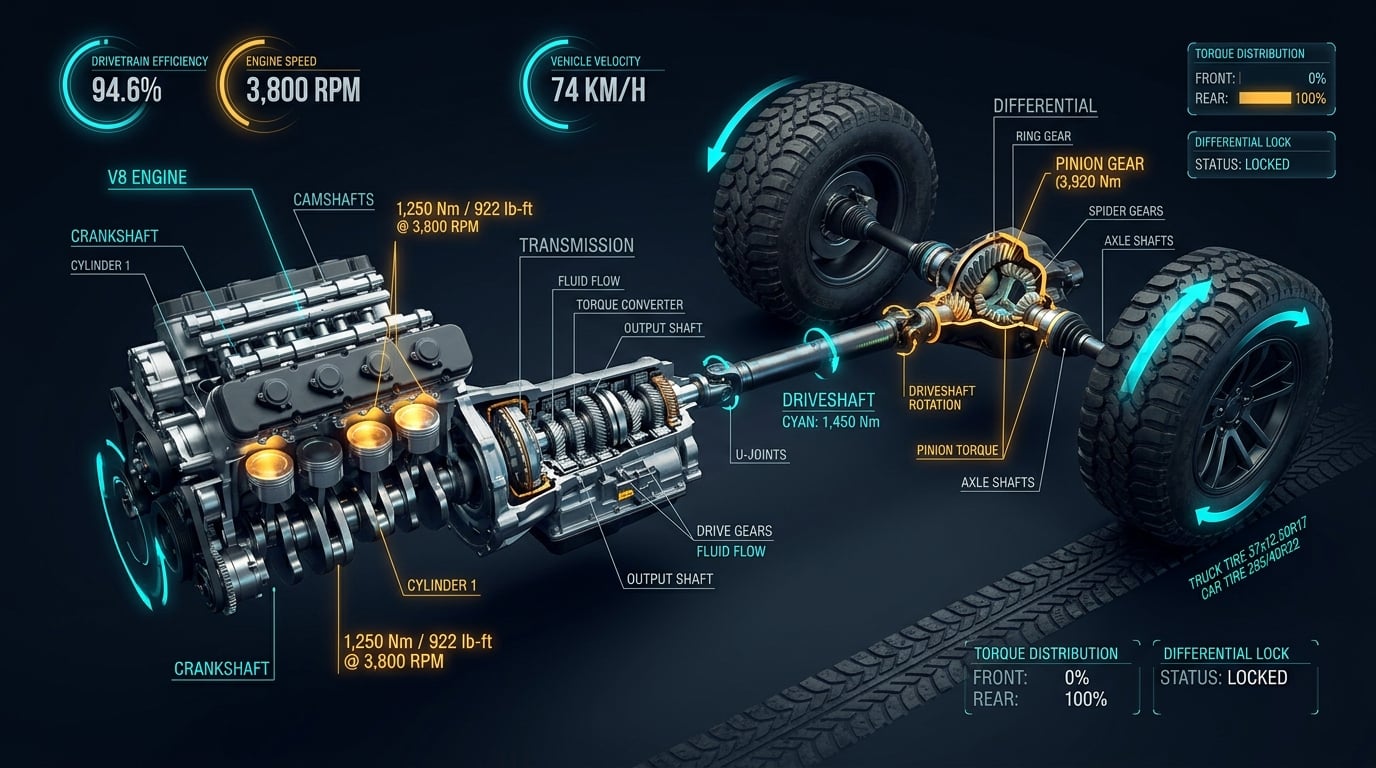

Automotive powertrain schematic cutaway illustrating engine crankshaft torque, transmission gearset, driveshaft, and rear differential ring and pinion gear turning oversized tires — **Powertrain Mechanical Advantage:** Engine torque transfer through transmission reduction, driveshaft RPM, and final drive ring & pinion multiplication to drive oversized tire radius.
Final Drive Ratio

Crawl Ratio & Transmission Overdrive Optimization

The calculation formula governing highway engine speed is: RPM = (MPH × Axle Ratio × Transmission Ratio × 336) / Tire Diameter.

Modern 8-speed and 10-speed transmissions feature deep overdrive ratios (0.64:1 to 0.68:1). If your effective axle ratio drops below 3.30:1 due to oversized tires, the computer will refuse to shift into top overdrive gears, ironically burning more fuel than a properly re-geared axle setup.

Frequently Asked Questions About Re-Gearing & Axle Ratios

What gear ratio do I need for 35-inch tires?

For most half-ton trucks and SUVs running 35-inch tires, a 4.10:1 ring and pinion gear ratio restores factory engine RPM on the highway. If you tow trailers, carry heavy overland equipment, or drive in mountainous terrain, a 4.56:1 or 4.88:1 ratio provides superior low-end torque and acceleration.

Will running bigger tires without re-gearing damage my transmission?

Yes. Taller tires reduce your engine mechanical leverage, forcing automatic transmissions to frequently downshift ('gear hunt') on slight inclines. This prevents torque converter lockup and causes extreme transmission fluid temperatures, leading to premature clutch and valve body failure.

Does re-gearing improve gas mileage after installing larger tires?

Often yes. Although higher numerical axle gears spin the engine at slightly higher RPM, they allow the engine to operate within its peak efficiency torque curve. This enables the transmission to maintain its highest overdrive gear without lugging or downshifting, frequently recovering 1 to 2 MPG.

How much does it cost to re-gear a 4WD truck or Jeep?

Re-gearing a 4x4 requires replacing both the front and rear differential ring and pinion sets. Quality gear sets, master overhaul bearing kits, and professional labor typically run between $1,800 and $2,800 total across both axles.
