Wheel & Stance Fitment

Wheel Offset & Backspacing Calculator

Compare two wheel setups to see how rim width and offset (ET) alter inner suspension clearance, outer fender poke, and backspacing.

Interactive Wheel Fitment & Cross-Section Visualizer

Original Wheel (Baseline) 8.0" ET+45

Rim Width (in)

Offset ET (mm)

Backspacing: 6.27 inches

New Wheel (Upgrade) 9.0" ET+35

Rim Width (in)

Offset ET (mm)

Backspacing: 6.38 inches

◄ Inner Suspension / Strut Side Outer Fender Lip Side ►

Inner Clearance (Strut): 2.7 mm closer to strut

Safe

Outer Position (Fender Poke): 22.7 mm extends outward

Flush / Poke

Wheel Offset vs. Backspacing Engineering Principles

What is Wheel Offset (ET)?

Offset (expressed as ET in millimeters from the German Einpresstiefe) is the distance from the wheel's true geometric centerline to the hub mounting face. A positive offset mounts the wheel inward towards the brakes, while a negative or lower offset pushes the wheel outward towards the fender lip.

Backspacing Explained

Backspacing is the physical distance from the back outer rim flange to the hub mounting surface, measured in inches. It includes the wheel's inner lip flange (~0.5 inches). Higher backspacing moves the wheel closer to your control arms, sway bar end-links, and suspension coils.

Calculating Flush Fitment

Widening rim width by 1 inch adds 12.7 mm of width to both the inside and outside of the wheel. Lowering offset by 10 mm pushes the wheel outward by 10 mm, yielding an overall 22.7 mm outward extension ("poke") for a flush stance.

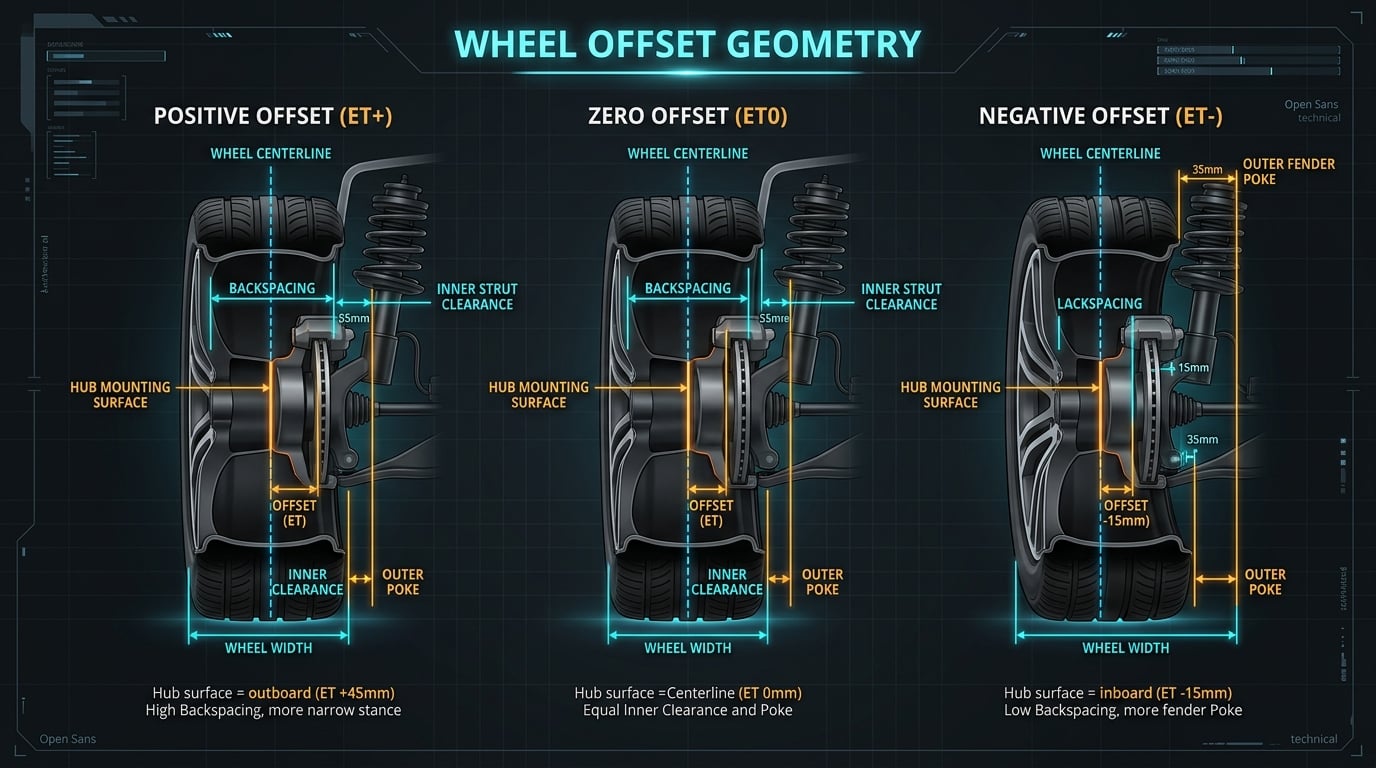

Automotive wheel offset engineering diagram comparing positive offset ET+, zero offset ET0, and negative offset ET- with wheel centerline and hub mounting surface — **Wheel Offset (ET) Anatomy:** Visualizing Positive Offset (ET+ pushes wheel inward), Zero Offset (ET0 on centerline), and Negative Offset (ET- aggressive deep-dish poke).
ET (Einpresstiefe) Metric

Scrub Radius, Wheel Spacers & Suspension Geometry

When changing wheel width and offset, stance appearance is only half the equation. Offsetting your wheels outward changes the vehicle's scrub radius—the distance between the tire contact patch center and where the steering axis inclination (SAI) intersects the ground.

Inner Suspension Interference

When increasing rim width without sufficiently lowering offset, the inner rim lip approaches the MacPherson strut tower, coilover perch, or upper control arm (UCA). Maintain at least 5 mm to 8 mm of static inner clearance to account for tire deflection during heavy cornering loads.

Outer Fender Lip Rubbing

Aggressive low-offset wheels that extend outward past the fender edge risk contacting the sheet metal lip on suspension compression. Solutions include mild negative camber adjustment, rolling the inner fender lips, or selecting a slightly narrower tire with a gentle stretch profile.

Frequently Asked Questions About Wheel Offset & Backspacing

Does a lower or negative offset push the wheel out or in?

A lower or negative offset (ET) pushes the wheel further outward toward the vehicle fender lip, creating a wider track width and aggressive 'flush' or 'poke' stance. Conversely, a higher positive offset pulls the wheel inward closer to the suspension struts, control arms, and brake calipers.

What is the difference between wheel offset and backspacing?

Wheel offset is the distance in millimeters from the wheel's centerline to the hub mounting pad. Backspacing is measured in inches from the back edge of the rim lip to the mounting pad. While offset is relative to the wheel centerline regardless of width, backspacing measures absolute physical depth including the 0.5-inch inner rim flange.

How do you calculate backspacing from wheel width and offset?

The standard engineering formula is: Backspacing (inches) = [(Rim Width + 1.0) / 2] + (Offset ET / 25.4). The 1.0 inch addition accounts for the 0.5-inch bead flanges on both the inner and outer rim edges.

Can changing wheel offset damage wheel bearings or suspension?

Yes. Drastically reducing offset or installing excessive wheel spacers alters the vehicle scrub radius and creates a longer lever arm on wheel bearings, steering knuckles, and ball joints. While changes of ±10mm to ±15mm are generally safe, extreme negative offsets can accelerate hub bearing wear and induce tramlining under hard braking.
