Staggered Tire & AWD Sync Calculator

Running wider rear tires than front tires? Verify that front-to-rear rolling diameter variance stays strictly within the 1.0% limit to protect your AWD transfer case.

Interactive Front vs. Rear Axle Diameter & Tolerance Gauge

Front Axle Tire
Diameter: 26.72 inches
Circumference: 83.94 inches
Revs/Mile: 754.8
Rear Axle Tire
Diameter: 26.58 inches
Circumference: 83.50 inches
Revs/Mile: 758.8
Front vs. Rear Diameter Variance
0.52% Delta

✓ SAFE FOR AWD: Variance is well within the strict 1.0% transfer case threshold.

0% Perfect 0.8% Safe 1.0% Limit 1.5%+ Danger

Popular Factory Staggered Setups

Vehicle Model Front Tire Rear Tire Diameter Delta Drivetrain
BMW M3 / M4 (G80/G82) 275/35R19 (26.6") 285/30R20 (26.7") +0.4% RWD & xDrive AWD
Porsche 911 Carrera (992) 245/35R20 (26.8") 305/30R21 (28.2") +5.2% (Tuned AWD) Porsche Traction Mgmt (PTM)
Chevy Corvette C8 245/35R19 (25.8") 305/30R20 (27.2") +5.4% RWD Mid-Engine
BMW 340i xDrive (M-Sport) 225/40R19 (26.1") 255/35R19 (26.0") -0.3% xDrive Center Diff Sync

AWD Mechanical Sync & Center Differential Protection

The Critical 1% AWD Rule

On all-wheel-drive vehicles (BMW xDrive, Audi Quattro, Subaru Symmetrical AWD), the front and rear axles are mechanically linked via a center transfer case or multi-plate viscous clutch. If front and rear tires roll at different rotational speeds exceeding 1.0%, the clutch packs slip continuously, overheating the fluid and causing premature mechanical failure.

Tread Wear Delta Awareness

A brand new tire has ~10/32" of tread, while a worn tire has ~4/32". That difference alone represents approximately 0.38" of overall diameter (over 1.4% variance!). If you only replace your rear tires with new ones and keep worn tires on the front, you can accidentally exceed your AWD system's allowable tolerance.

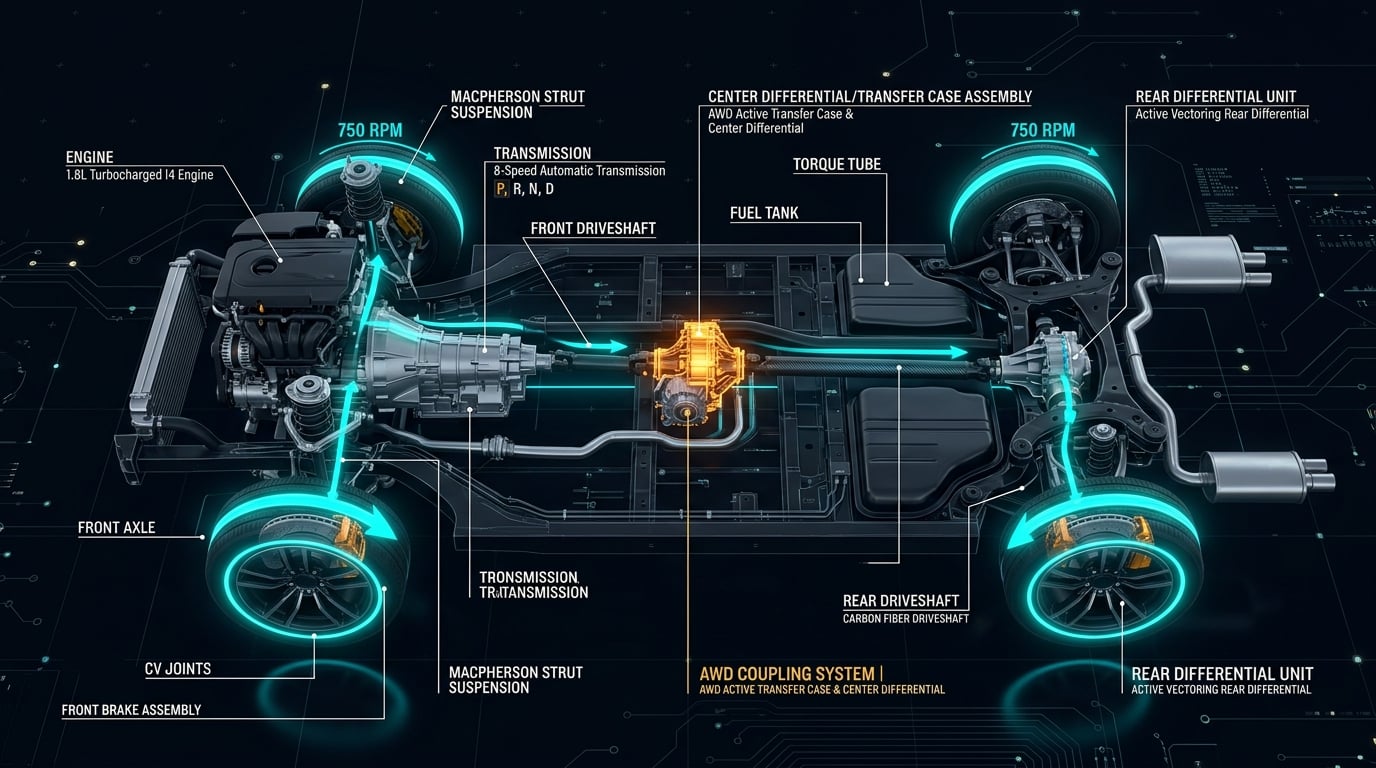

All-Wheel Drive chassis drivetrain schematic illustrating center differential transfer case assembly, front and rear driveshafts, and rotational speed RPM sync across staggered tire diameters
AWD Drivetrain Sync
AWD Transfer Case Dynamics: Demonstrating the critical 1% rolling circumference threshold to prevent viscous clutch overheating and mechanical center differential bind.
xDrive / Quattro / AWD

OEM Manufacturer AWD Staggered Tolerance Limits

BMW xDrive

≤ 1.0% variance allowed. Exceeding triggers 4x4 transfer case actuator clutch shutter.

Audi Quattro

≤ 4/32" tread depth delta (Torsen center diff) or ≤ 1.2% on ultra AWD.

Subaru Symmetrical

≤ 1/4" (0.25") total rolling circumference difference (~0.3% max tolerance).

Frequently Asked Questions About Staggered Tire Fitments

Can you run staggered tire sizes on an All-Wheel Drive (AWD) car?
Yes, but strictly on the condition that the front and rear rolling overall diameters match within 1.0% (and ideally within 0.5%). If front and rear tires differ significantly in height, they turn at different speeds on dry pavement, forcing the AWD transfer case clutch pack or viscous coupling to slip continuously until it overheats and destroys itself.
What is the maximum allowable tire diameter difference for BMW xDrive?
BMW engineering specifies a maximum front-to-rear circumference difference of 1.0% on all xDrive vehicles. Exceeding 1.0% delta triggers transfer case judder, stability control intervention, and premature wear of the xDrive transfer case clutch actuator.
Can uneven tire wear ruin an AWD transfer case on a staggered fitment?
Yes. Even if the factory staggered sizes start with an acceptable 0.3% delta, if the rear tires wear down faster than the front tires by 3/32" to 4/32", the rolling diameter mismatch will exceed the 1.0% safety threshold. Always measure tread depth on all four corners and replace staggered AWD tires in complete sets.
What is the benefit of a staggered wheel setup vs square?
Staggered setups (wider rear wheels and tires) increase contact patch surface area on the drive axle for high-horsepower rear-wheel drive and rear-biased AWD performance cars. This prevents power-oversteer wheelspin on acceleration while retaining crisp, low-resistance steering response up front.
