Tire Pressure & Load Inflation Calculator (PSI)
Switching from P-Metric factory tires to heavy-duty LT Load Range C/D/E tires? Find your required cold tire inflation pressure to match OEM load capacity safely.
Interactive Cold Tire Pressure (PSI) Calculation Tool
⚠️ Standard 35 PSI is dangerously low for LT Load Range E tires under vehicle payload.
Load Range Inflation Characteristics
| Tire Classification | Standard Max PSI | Typical Daily PSI | Sidewall Construction |
|---|---|---|---|
| P-Metric (Standard Load) | 35 – 44 PSI | 32 – 36 PSI | 2-ply polyester casing. Flexible, lightweight. |
| P-Metric (Extra Load XL) | 42 – 50 PSI | 36 – 42 PSI | Reinforced bead and shoulder plies. |
| LT Load Range C | 50 PSI | 40 – 45 PSI | 6-ply equivalent rated. Moderate off-road puncture resistance. |
| LT Load Range E | 80 PSI | 45 – 55 PSI | 10-ply equivalent. Extreme puncture resistance for heavy 3/4 ton towing. |
Tire & Rim Association (TRA) Load Inflation Guidelines
Why Factory Placard PSI Doesn't Apply to LT Tires
Your door placard was calculated for lightweight P-Metric tires that reach maximum load capacity at 35 PSI. Light Truck (LT) tires have much stiffer, thicker sidewalls that require higher internal air pressure (typically 45–50 PSI) to support the exact same weight safely without excessive heat build-up.

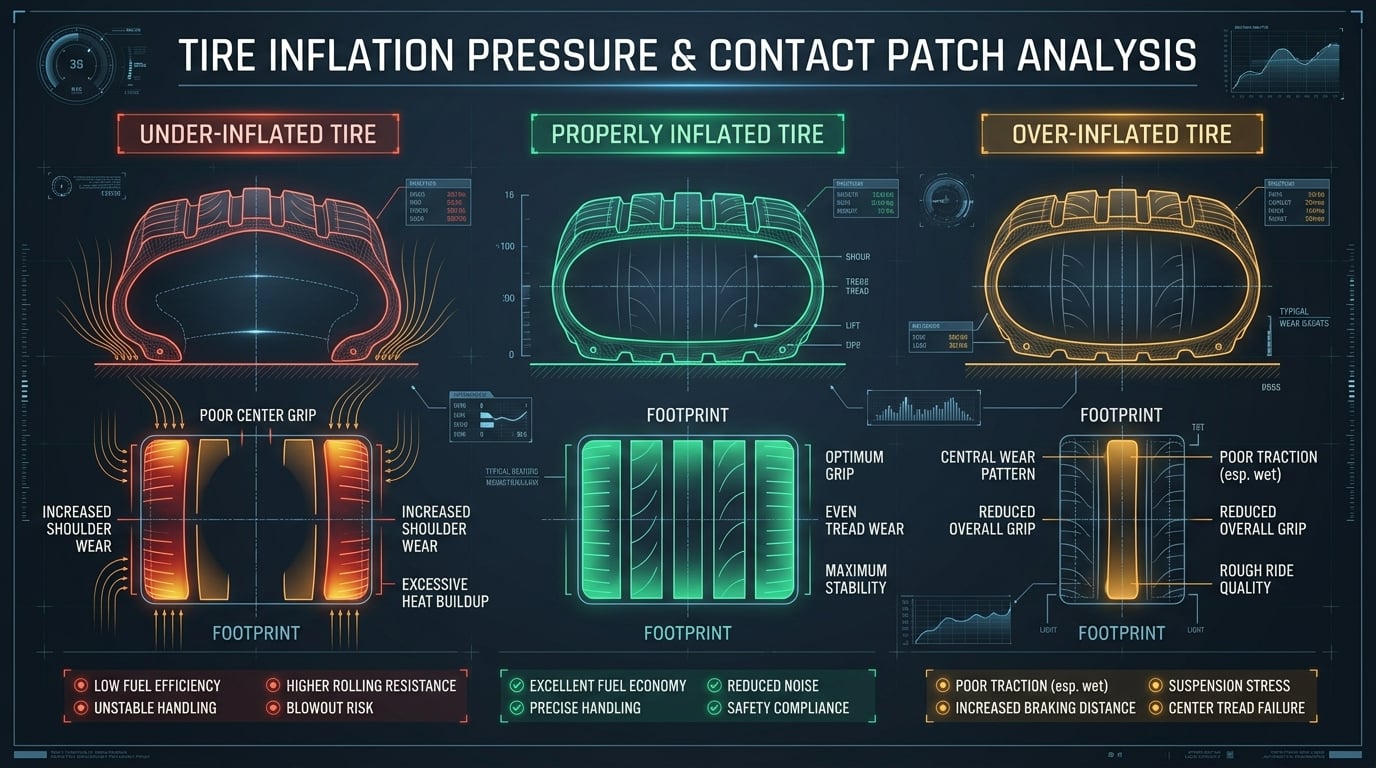

The Chalk Test for Perfect Contact Patch
To fine-tune your pressure: draw a wide chalk line across your tire tread, drive forward 100 feet on flat asphalt, and inspect the chalk wear. If chalk rubs off only in the center, you are overinflated. If chalk rubs off only on the edges, you are underinflated. Even wear indicates optimal contact.
Federal Safety Standard: The 1.10× P-Metric De-Rating Factor
Under US Federal Motor Vehicle Safety Standards (FMVSS) and TRA rules, when a passenger P-metric tire is fitted to a pickup truck, SUV, or multi-purpose passenger vehicle, its maximum published load capacity must be divided by 1.10 (reduced by ~9.1%).
When upgrading to an LT tire, this 10% penalty no longer applies because LT tires are explicitly engineered and rated for high-center-of-gravity utility use.
